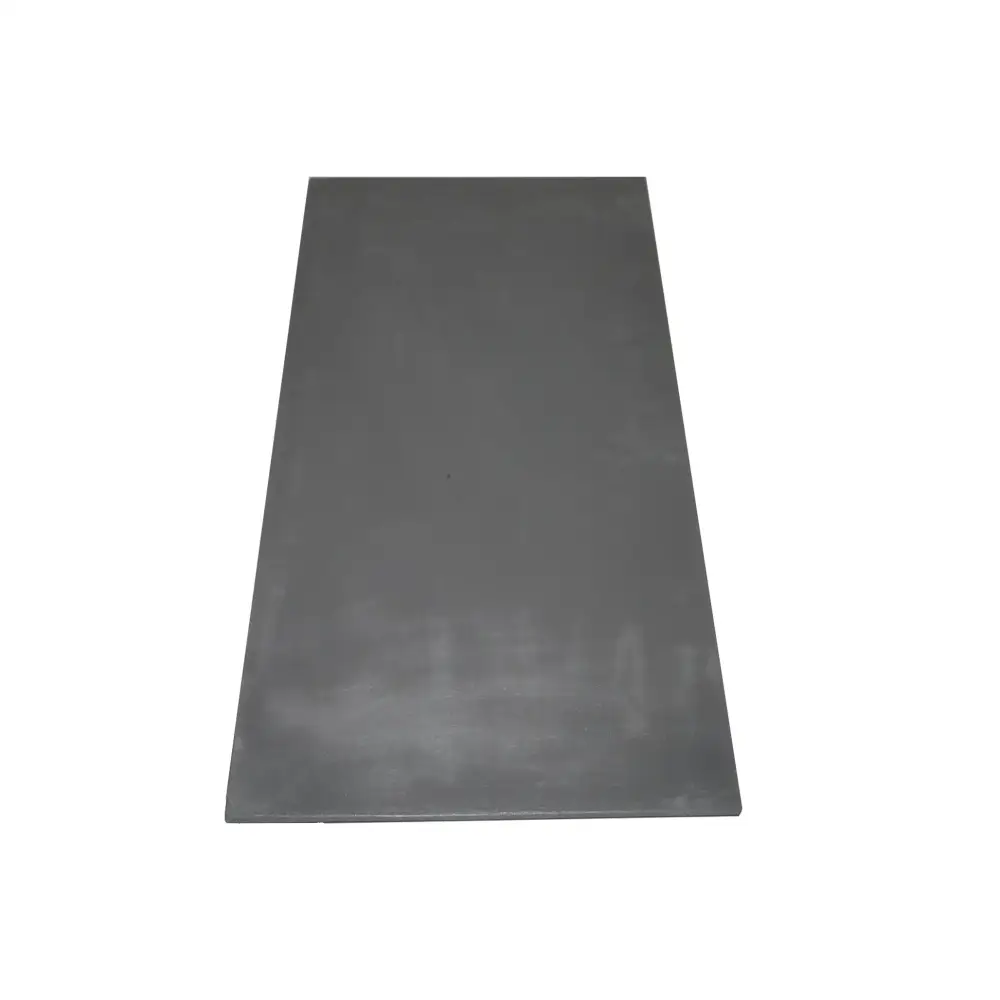

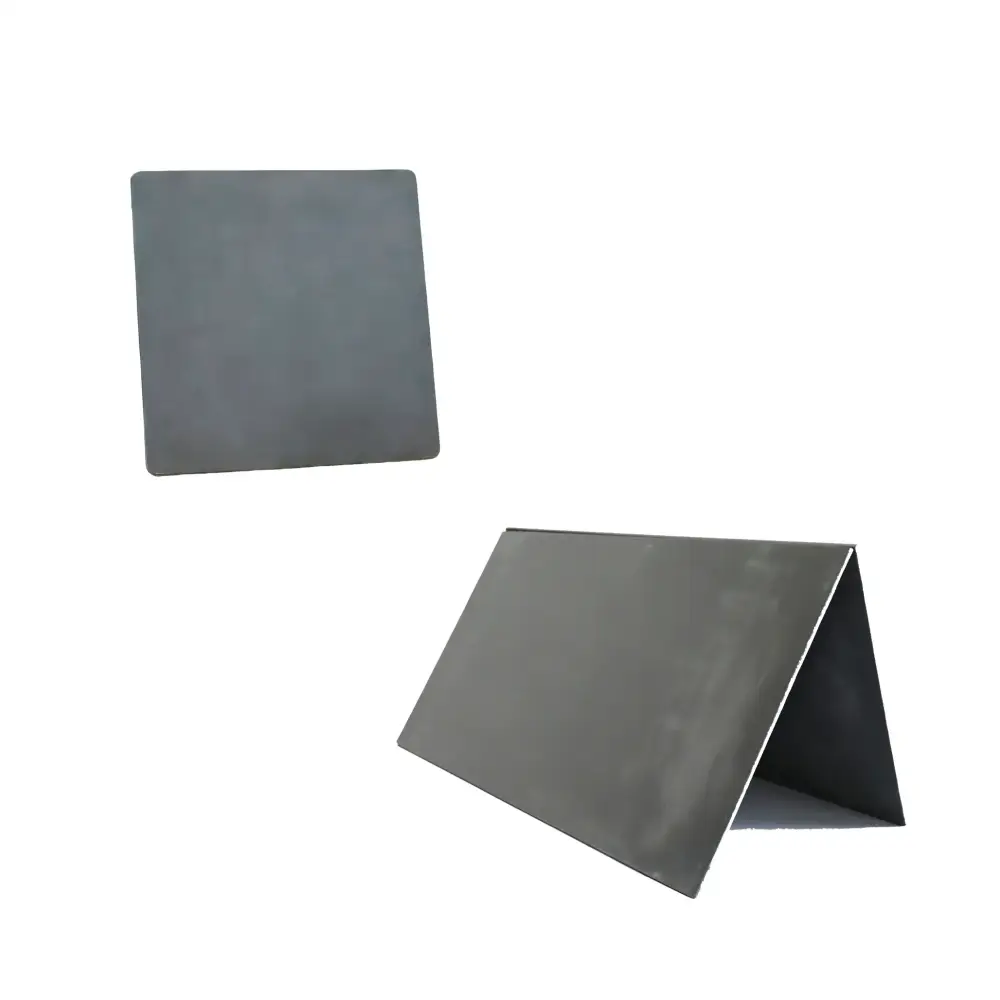

Silicon nitride-bonded silicon carbide kiln partition
This silicon nitride-bonded silicon carbide kiln partition is a popular choice for large reduced-gas kilns and is also suitable for pre-fired electric kilns and soda firing. Compared to similar shelves on the market, this product is lighter and stronger, and will not deform after multiple high-temperature firings, making it the preferred equipment for ceramic studios and large industrial kilns.
Product Overview
This NSiC silicon nitride-bonded silicon carbide kiln partition is a popular choice for large reduced-gas kilns and is also suitable for front-fired electric kilns and soda firing. Compared to similar silicon carbide shelves on the market, this product is lighter and stronger , and will not deform after multiple high-temperature firings. Two partitions can be aligned and spliced to form a continuous and flat firing surface.
The product utilizes an advanced NSiC silicon nitride-bonded silicon carbide structure and belongs to our exclusive Starny series of kiln furniture. It is specifically designed to save space, increase production capacity, and reduce carbon footprint .
Our high-end ceramic kiln furniture is mainly composed of silicon nitride-bonded silicon carbide (NSiC) , which can withstand working temperatures up to 2600°F , making it the preferred high-temperature kiln partition equipment for ceramic studios and large industrial kilns.
The kiln plate is 19 times stronger than a traditional silicon carbide frame or a 1-inch thick Cordillera frame, yet 50% lighter.
Core Values and Advantages
Higher loading efficiency
The dense structural design allows for more rational kiln layout and increases the single loading capacity; stable performance reduces burn-off rate and indirectly improves production efficiency.
More stable firing quality
A smooth firing surface and excellent high-temperature stability effectively improve the firing quality and consistency of ceramics.
Green, energy-saving, and low-carbon
Reduce heat loss and carbon emissions, meet environmental protection production requirements, and reduce long-term operating costs.
Specifications and dimensions table
Uniform thickness: 5/16 inches (8.0mm)
| Imperial dimensions (length × width × thickness) | Metric dimensions (mm) | Net weight (kg) | Net weight (lb) | Unit price (yuan) |
|---|---|---|---|---|
| 14″×28″×5/16″ | P-355×711×8.0 | 5.55 | 12.21 | 318.00 |
| 11″×22″×5/16″ | P-280×559×8.0 | 3.44 | 7.57 | 182.00 |
| 18″×18″×5/16″ | P-457×457×8.0 | 4.59 | 10.10 | 244.00 |
| 6.75″×6.75″×5/16″ | P-171×171×8.0 | 0.64 | 1.41 | 68.00 |
| 12″×24″×5/16″ | P-305×610×8.0 | 4.09 | 9.00 | 219.00 |
| 16″×16″×5/16″ | P-406×406×8.0 | 3.63 | 7.99 | 192.00 |
| 18″×24″×5/16″ | P-457×610×8.0 | 6.13 | 13.49 | 299.00 |
| 12″×12″×5/16″ | P-305×305×8.0 | 2.05 | 4.51 | 108.00 |
| 10″×20″×5/16″ | P-254×508×8.0 | 2.84 | 6.25 | 158.00 |
| 16″×13″×5/16″ | P-406×330×8.0 | 2.95 | 6.49 | 168.00 |
| 20″×20″×5/16″ | P-508×508×8.0 | 5.68 | 12.50 | 299.00 |
| 24″×24″×5/16″ | P-610×610×8.0 | 8.19 | 18.02 | 429.00 |
| 22″×22″×5/16″ | P-559×559×8.0 | 6.87 | 15.11 | 359.00 |
| 15″×15″×5/16″ | P-381×381×8.0 | 3.19 | 7.02 | 169.00 |
| 13″×26″×5/16″ | P-330×660×8.0 | 4.79 | 10.54 | 259.00 |
Product Description
Basic parameters
• Material: Silicon nitride bonded silicon carbide (NSiC)
• Thickness: 5/16 inches (8.0mm)
• Maximum operating temperature: 2600°F
• Customization service: We can support custom silicon carbide kiln furniture of non-standard sizes.
